A revolutionary tool for eddy current nondestructive evaluation
Measurement of thickness, distance, electrical conductivity, magnetic permeability
on a wide range of materials and
on flat or curved surfaces

Sciensoria has released Conducsens^TM, a new eddy current non destructive evaluation system for the measurement of thickness, electrical conductivity, magnetic permeability of non magnetic and magnetic metals, graphite, and carbon fiber composite materials. In many cases, no calibration is needed because the Conducsenstm has a self-calibration function.

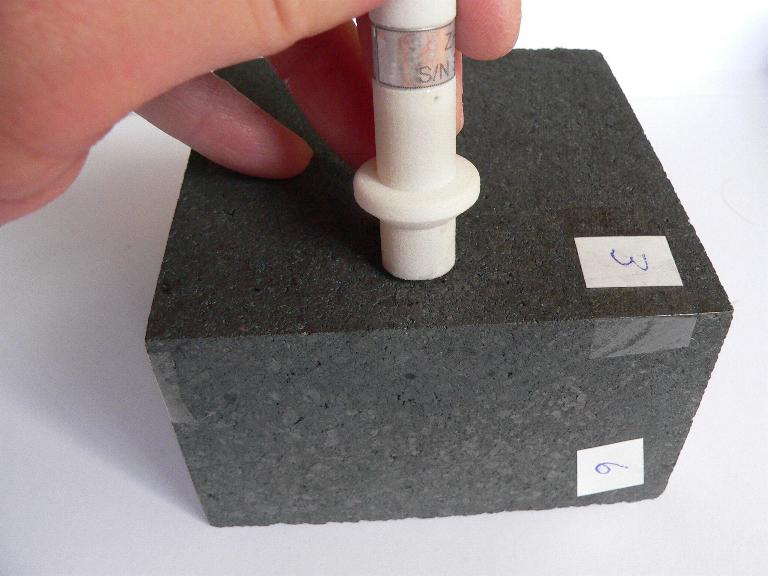

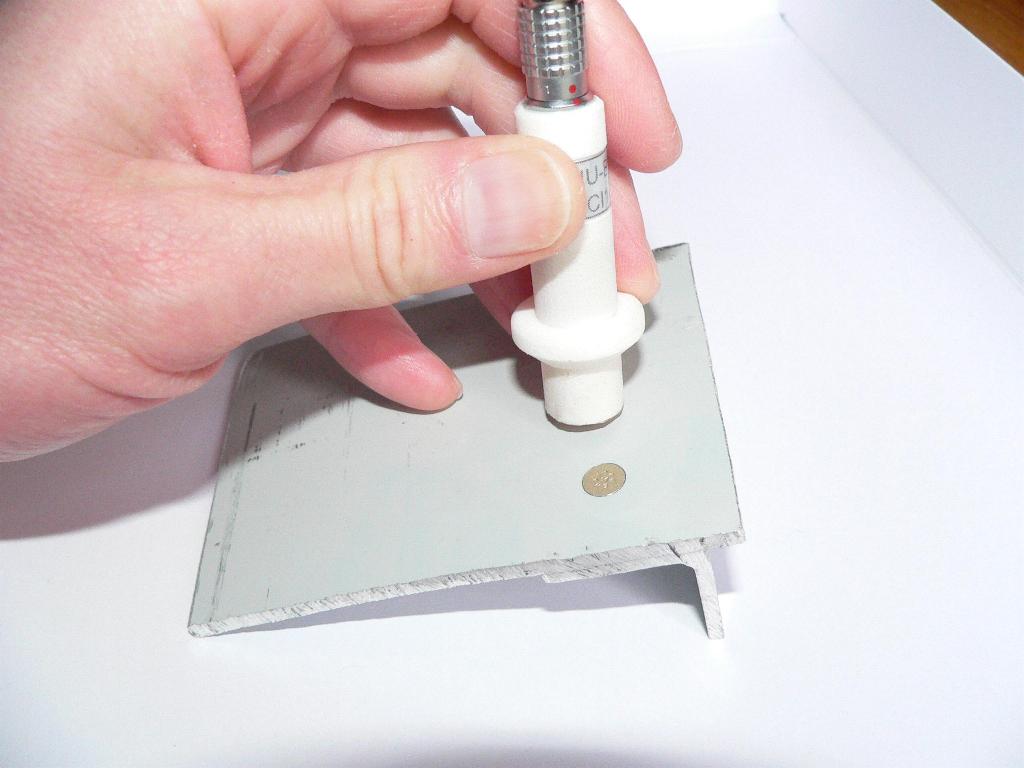

1. Measurement of the thickness of many types of conductive materials without changing the calibration: the system can measure the thickness of wall or sheet metal made of aluminum and its alloys, copper and its alloys, titanium, stainless steels, graphite, etc.. without specific knowledge of the material. The probe is applied at one side of the wall, without access to the other side of the wall.

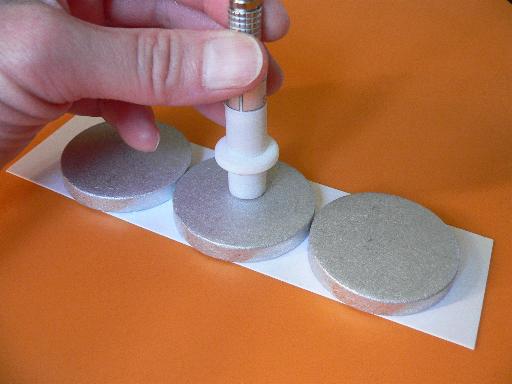

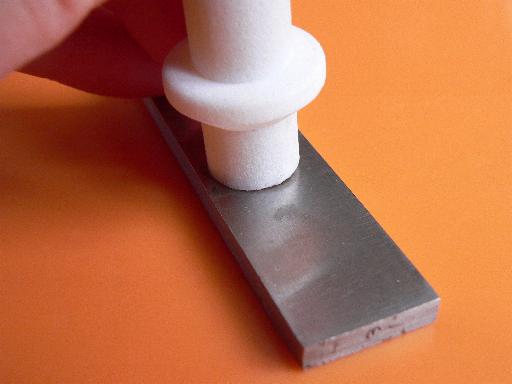

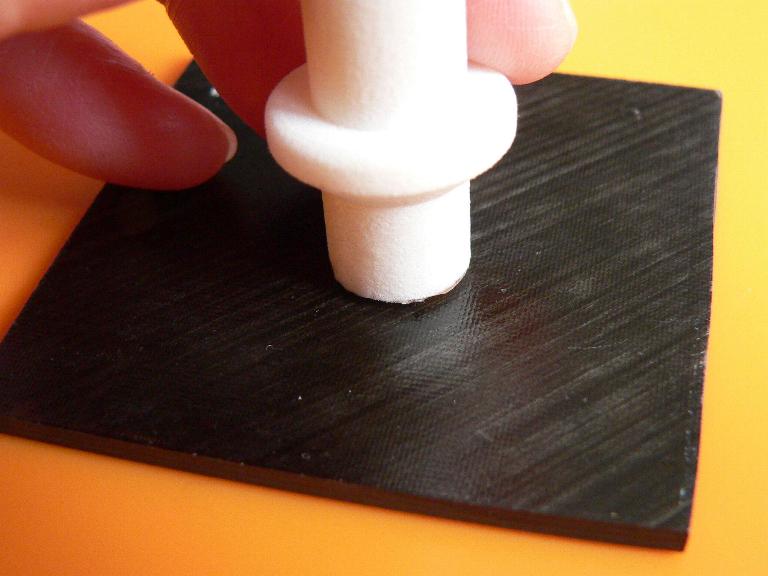

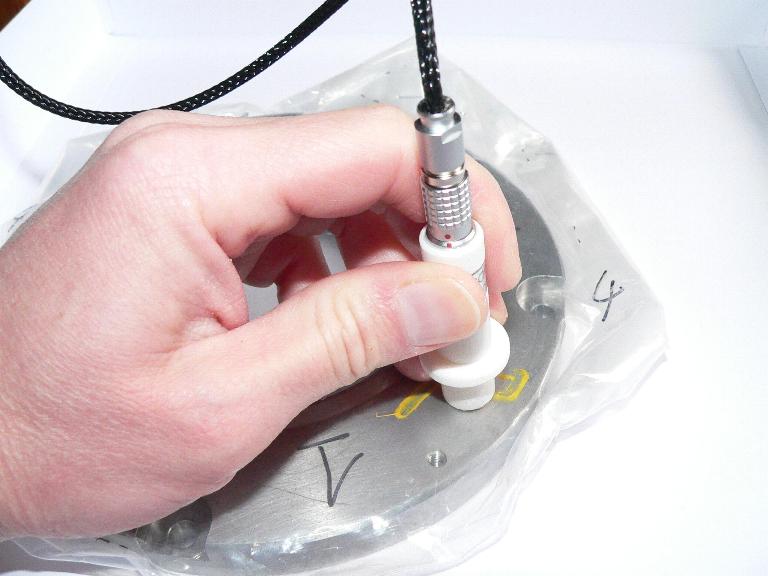

2. Measurement of the electrical conductivity of a wide range of materials : all non magnetic metals, graphite, carbon fiber composite materials (CFRP) and low magnetic materials like some steels or magnetic stainless steels. Unlike many commercial systems, our technology can measure the electrical conductivity on thin metallic plates or deposit layers.

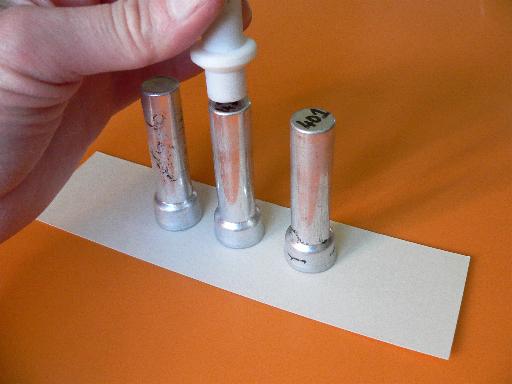

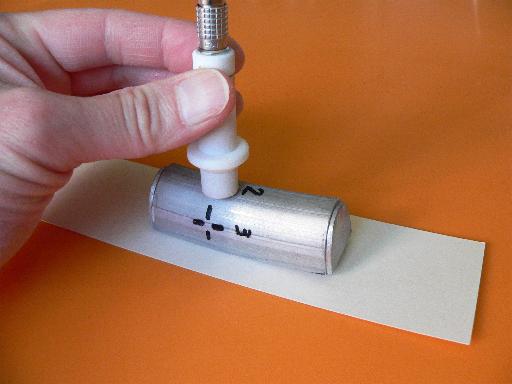

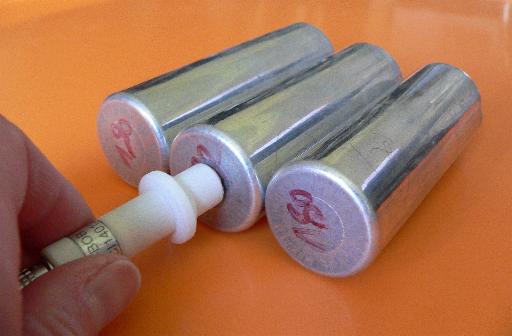

3. Measurement on both flat or curved surfaces: traditionnally, curvature causes errors on the measurement result. Our system can measure on curvature radius as small as 9 mm with very few error.

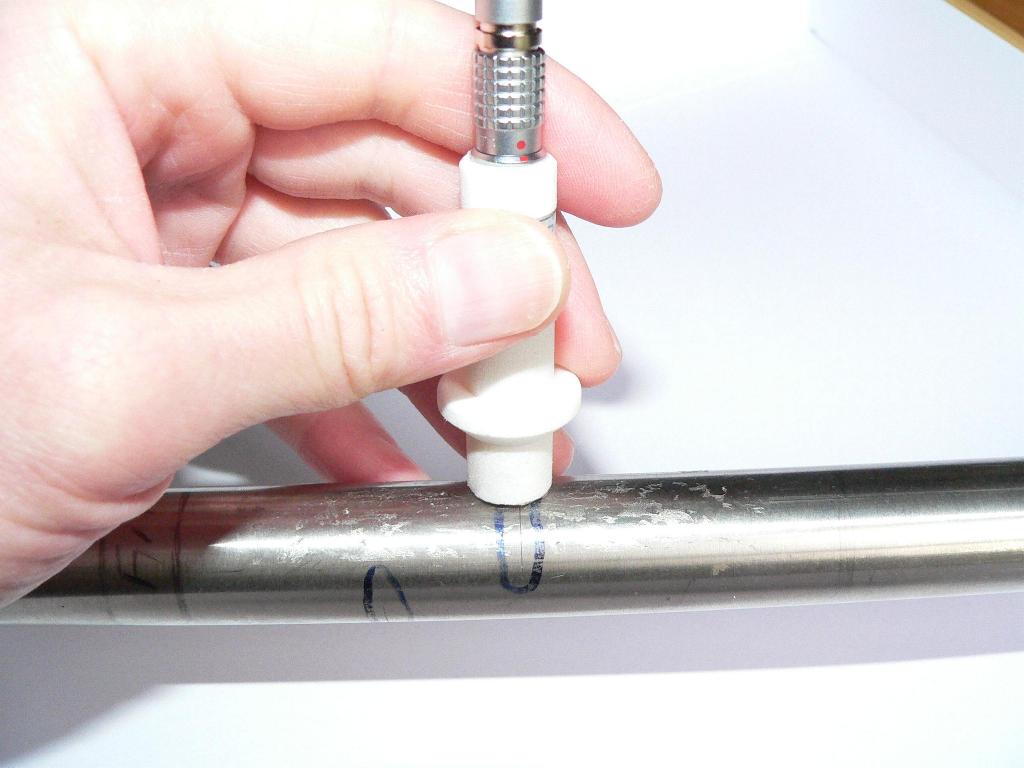

4. The eddy current measurement technique is non destructive, non instrusive, contactless, single-sided. It is very suitable for large sheet metal product testing, tube testing, moving part checking, ...

Demo videos available (see under the pictures)

retour accueil

The eddy current non destructive testing/evaluation method

The eddy current non destructive testing/evaluation method uses a alternative magnetic field to excite a conductive target in order to create induced currents in it. These currents are called "eddy currents". When flowing inside the target, the eddy currents work as probes. They can reveal the internal state of the target through the secondary magnetic field that they create in the space around the target.

In order to create the alternative magnetic field, an alternative current of frequency f is injected into a coil. The magnetic field will induce eddy current to conductive materials near the coil. The eddy currents create their own magnetic field which tends to opposite to the exciting field. The sum of these fields is different from the exciting field in magnitude and phase angle. The induced voltage across the coil is an image of this field, it can be monitored in order to determine the characteristics of the target.

This phenomena is similar to a transformer: the target is the secondary circuit of the transformer. The difference is that the "secondary circuit" of a transformer is constant, while eddy currents in a target change as function of many parameters: the coil-target distance, the target's conductivity, magnetic permeability, thickness, etc... When there are flaws inside the target, magnetic field on its surface can changes locally, the changes can be detected by a small detector or by differential probes.

An eddy current probe is sensitive to many parameters at a time. This is an advantage because one can use it for many purposes, but also a problem because it may be difficult to distinguish the effect of each parameter. In order to measure a parameter, the measurement system needs to be calibrated: the user has to acquire eddy current signal on reference standards where only the parameter to be measured varies, while the other parameters are kept constants. This process is quite long, difficult and expensive.

We have invented the Conducsens(tm) system which can be calibrated with respect to various parameters changes "one time for all". The calibration result is recorded into a computer program called "model". When in use, the system does not need to be recalibrated on various calibration gauges and can give correct result. If necessary, an extra calibration on only one calibration gauge can be carried out in order to remove offset and improve accuracy.

The Conducsens(tm) is composed of a special probe, a program for Windows computers, and a connected impedance analyzer. Many models of impedance analyzers are compatible: Keysight (former Agilent), Hioki, IetLabs, etc..

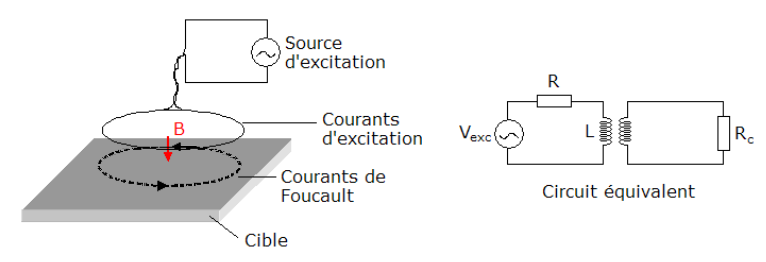

Illustration of an eddy current testing (left) and the equivalent circuit (right)

home page

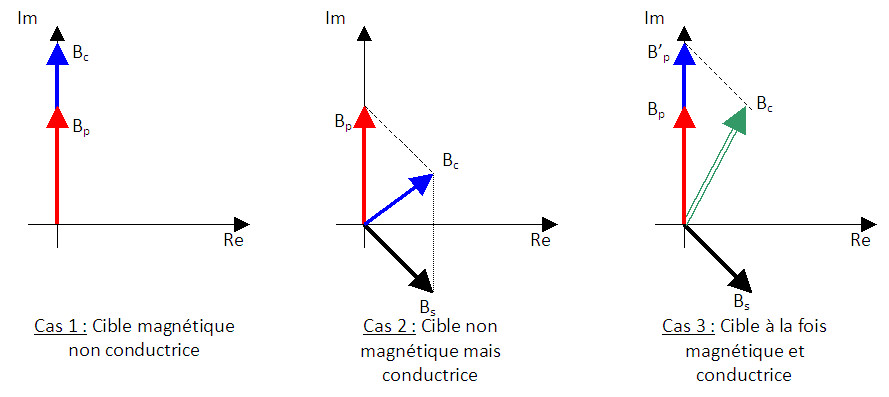

Behaviour of the magnetic fields around an excited target
